IP Intercoms
Digital Acoustics’ IP7 IP intercom solutions provide direct, high-quality two-way communication over TCP/IP networks, both locally and worldwide. Our IP intercom technology delivers high-quality voice audio over local area networks (LAN) and wide area networks (WAN) with minimal bandwidth requirements.
Whether deploying a new intercom system or retrofitting existing access panels and stanchions, IP7 systems support fast setup and scale from simple configurations to sophisticated, customized solutions. From small offices to citywide coverage, Digital Acoustics IP7 implementations are simple to deploy and cost-effective.
IP Intercoms End-Uses Include:
The following are some of the applications for our IP intercoms:
- Implementations include security integration, education, homeland security, defense, transportation, and industrial and commercial installations. Choose from our all-in-one IP intercoms with integrated speakers and microphones, or retrofit existing analog call panels and stanchions by connecting them to our IP intercom modules.
- Use with our TalkMaster™ FOCUS software, VoIP phone systems as a SIP/VoIP intercom, or with one of our third-party video or security management integrations such as InformaCast or IMMIX (see Integrations).
- Whether it’s a small office or a city-wide IP security intercom deployment, our IP intercoms are scalable and cost-effective for both small and large applications. Our desktop and wall-mount models are ideal for office or indoor environments. Rugged, industrial 2-gang IP intercoms are available in half-duplex and full-duplex, making them perfect for security intercom requirements or outdoor use.
IP Intercoms
Products

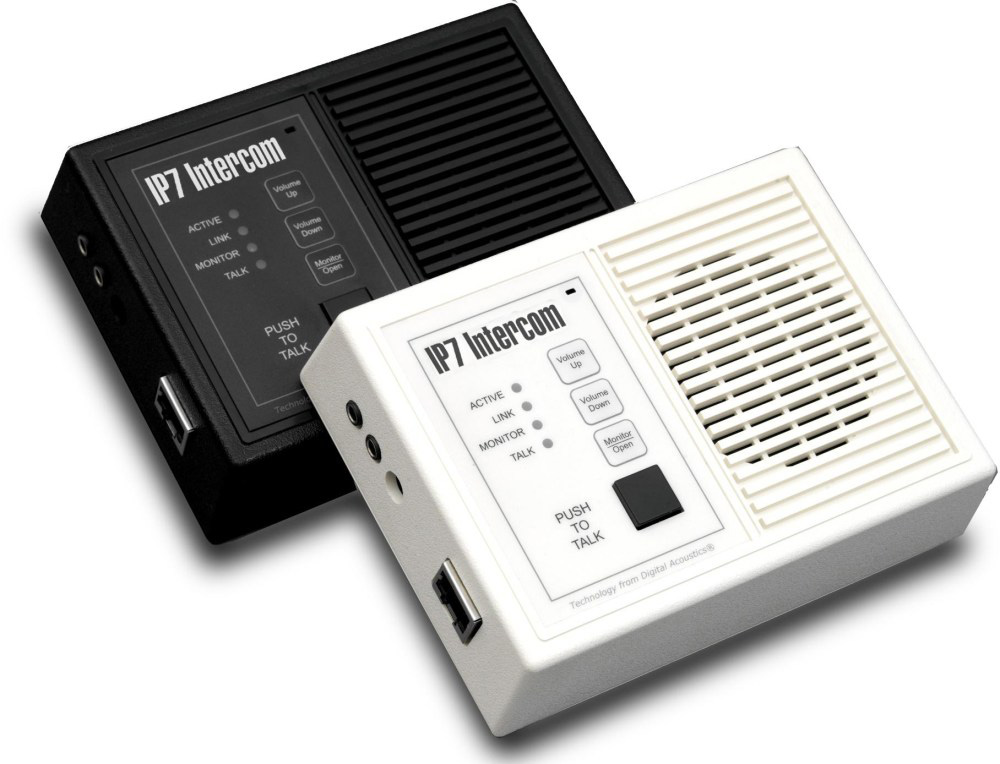

Desktop/ Wallmount IP Intercom
SKU: IP7-EDW-POE (White); IP7-EDB-POE (Black); IP7-EDW-POE-SE (White SIP Optimized); IP7-EDB-POE-S3 (Black SIP Optimized)); IP7-EDW-POE-S3-IC (White SIP+InformaCast); IP7-EDB-POE-S3-IC (Black SIP+InformaCast)
The IP7‑EDW/B‑POE is an all‑in‑one IP intercom available in black or white. The device is designed to be installed on a wall or flat surface, such as a desk, and supports either full‑duplex or half‑duplex communications. It is powered by either PoE or a 9V power supply.Accessories: Wall Power Supply 110V-9VDC

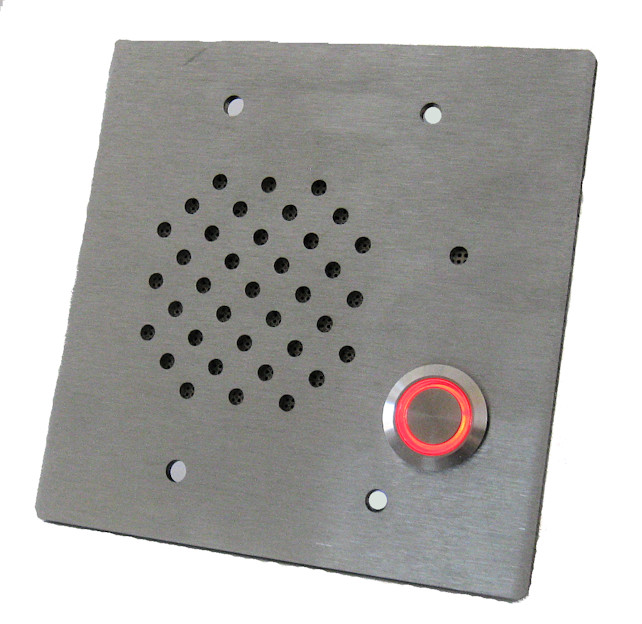

2 Gang IP Intercom
SKU: INT-IP-2GANG; INT-IP-2GANG-S3; INT-IP-2GANG-S3-IC (InformaCast)
The INT‑IP‑2Gang is an all‑in‑one IP intercom door station panel used with the TalkMaster Focus System or a SIP/VoIP intercom. It is designed to fit in an industry‑standard two‑gang electrical box with a plaster ring (minimum depth of 2″). It is powered by PoE.Accessories: Hooded 2Gang Enclosure
For retrofitting analog intercoms to IP intercoms see our IP7-FX amplifier/intercom.

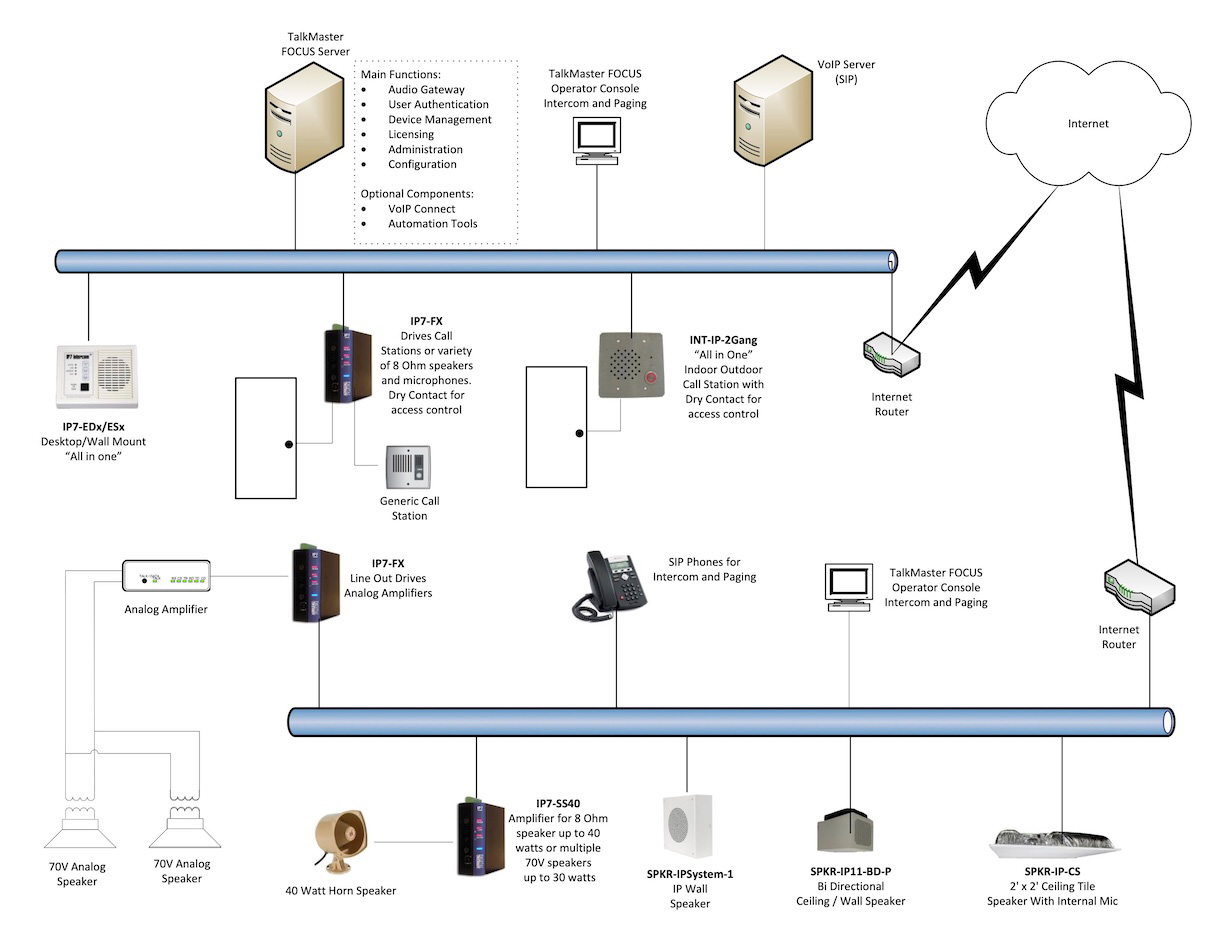

Product Architecture
The Digital Acoustics IP Audio Ecosystem. This is an example of an integrated system that utilizes Digital Acoustics products and other network infrastructure to support the system.
A Solution For Every Need
Businesses large and small use our solutions on a daily basis to improve workplace communication and efficiency.
