Product Details
Description

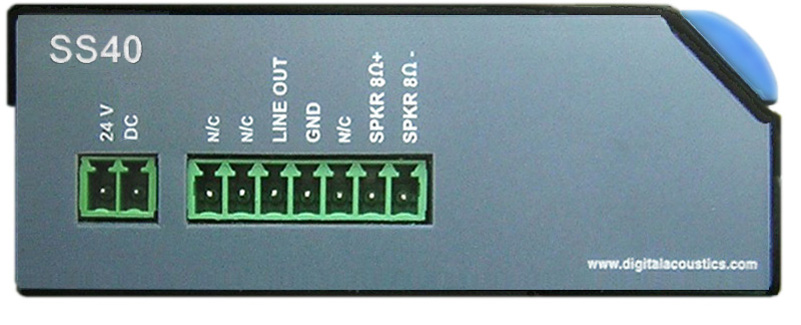

IP Audio Amplifier that supports IP Paging, SIP Paging and InformaCast. Provides up to 35 Watt of audio to one or more analog speakers and horns turning what is connected to the IP7-SS40 into an IP endpoint/zone. DIN Rail or Surface Mount. Does not include speakers and requires a power supply (does not power via PoE).
- Can supply up to 35 watts into a single 8 Ohm speaker
- Can drive one or more speakers over a 70V distribution line (requires the COMTR40/70 Line Transformer and speakers with 70V transformers)
- A secondary RJ-45 network connector to connect a second IP device to the network
- Patented Fail Forward redundancy technology
Requires an external 24VDC power supply.
Can be used with TalkMaster Focus System, SIP/VoIP phone system, or a security and video management system which we have done an integration (see Integrations) – Note: InformaCast requires a license.
Ordering Options:
| Firmware Feature | SKU |
| IP7 | IP7-SS40 |
| S3 (Optimized SIP) | IP7-SS40-S3 |
| S3/InformaCast | IP7-SS40-S3-IC |
Product Documents
- Data Sheet
Datasheet IP7-SS40
- Getting Started Guide
GettingStartedGuide IP7-SS40
- Reference Manual
ReferenceManual IP7-SS40
Product Software
All IP Amplifier Products
Software
TalkMaster Focus: Comprehensive IP Audio Management
TalkMaster FOCUS
TalkMaster™ FOCUS is the industry-leading platform for centrally managing groups of IP7 IP intercoms, IP speakers, IP amplifiers, and TalkMaster operator consoles over local and/or wide-area networks.
The TalkMaster™ FOCUS Enterprise Operator application connects to the TalkMaster™ FOCUS Server and provides the user interface used for talking and listening to IP audio endpoints.
