Analog Wall Speaker

SKU: SPKR-1-T; SPKR-1-8

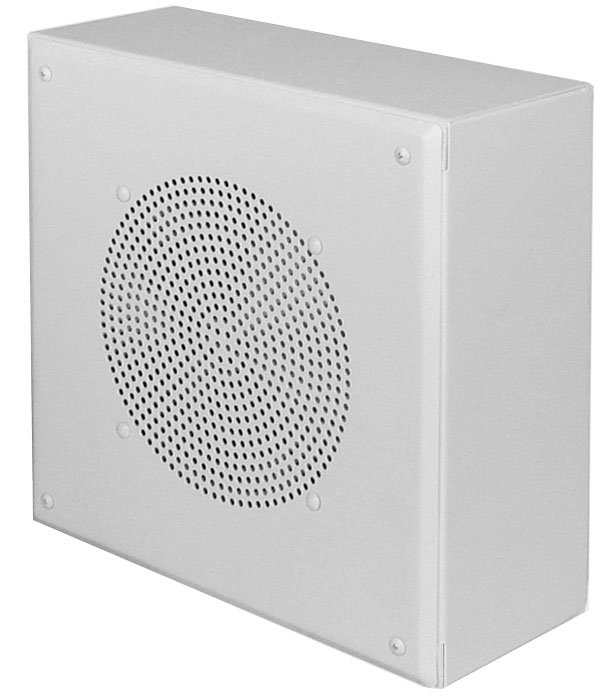

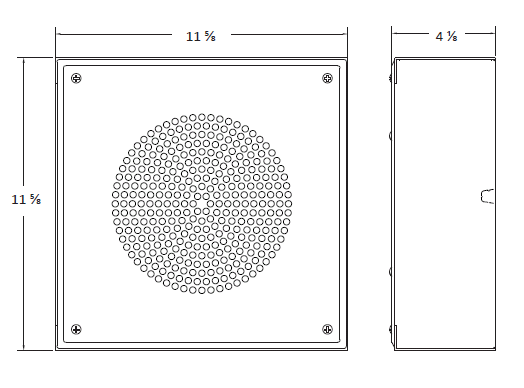

The Analog Wall Speaker is an indoor 12″ × 12″ white speaker with an 8″ driver that is quick and easy to install. It is available in an 8‑ohm version (SPKR‑1‑8). It is also available with a 5‑watt dual‑voltage (25V and 70.7V) transformer with color‑coded leads (SPKR‑1‑T). Transformer taps include 5W, 2.5W, 1.25W, 0.62W, and 0.31W. The SPKR‑1‑T can be used with one of our IP7‑SS40 IP amplifiers when individual IP endpoints are not required, enabling you to group multiple speakers together totaling up to 35 watts.

Product Details

Description

This is an analog speaker that can be connected to an IP network using a variety of Digital Acoustics IP audio modules. The speaker is intended for indoor use and is designed to be surface mounted.

Model SPKR‑1‑8 is an 8‑ohm speaker.

Model SPKR‑1‑T has an integrated dual‑voltage (25V and 70.7V) transformer with color‑coded leads. Taps include 5W, 2.5W, 1.25W, 0.62W, and 0.31W.

Product Documents

Data Sheet
Datasheet SPKR-1-T

Documents for all Products

Product Software

View all Software
